I recently moved dalescott.net from a bare metal server to a $5/month DigitalOcean droplet (512MB Memory, 1 Core Processor, 20GB SSD Disk). Afterwards, I wanted to get a measure of server performance. A quick web search came up with some candidates:
- Load Impact, claiming “The leading on-demand load and performance testing software-as-a-service.”
- Neustar, who claims “We started it all. And we continue to shape the industry.”
- WebPageTest, created by AOL for internal use before being open-sourced and now primarily developed and supported by Google.
There are more, but these will be enough to get started with. I had wanted to include Blitz.io, which was referenced in a blog post by Ryan Frankell on using Apache on a small DigitalOcean droplet . However, I couldn’t find any free evaluation capability, and Blitz’s demo is hard-coded to use a Blitz demo site, which eliminated Blitz from consideration.
Tuning Apache
The first step was to tune Apache. 512MB of RAM is low by server standards and also Apache’s default configuration. Some tuning is needed to keep Apache operating in the available RAM, otherwise Apache will gradually consume everything, including swap, and eventually the kernel will start thrashing.
KeepAlive
KeepAlive On MaxKeepAliveRequests 100 KeepAliveTimeout 5
The FreeBSD apache24 port already sets these as defaults in /usr/local/etc/apache24/extra/httpd-default.conf (the default MaxKeepAliveRequests is even lower than the recommended 200).
References
MPM-Prefork
Although Event is reportedly the default MPM in Apache 2.4, Prefork is still the default on FreeBSD 10.x for compatibility with non-thread-safe php/perl/python modules.
MaxRequestWorkers and MaxConnectionsPerChild must be lowered in /usr/local/etc/apache24/extra/httpd-mpm.conf, and the Include line for httpd-mpm.conf in usr/local/etc/apache24/httpd.conf must be un-commented (and Apache restarted).
# prefork MPM # StartServers: number of server processes to start # MinSpareServers: min number of server processes which are kept spare # MaxSpareServers: max number of server processes which are kept spare # MaxRequestWorkers: max number of server processes allowed to start # MaxConnectionsPerChild: max num of connections a server process serves # before terminating # #<IfModule mpm_prefork_module> # StartServers 5 # MinSpareServers 5 # MaxSpareServers 10 # MaxRequestWorkers 250 # MaxConnectionsPerChild 0 #</IfModule> <IfModule mpm_prefork_module> StartServers 5 MinSpareServers 5 MaxSpareServers 10 # reduce max number of server processes to not exceed physical memory # called "MaxClients" prior to v2.3.13 (MaxClients is still supported) # - uses cache under load when 25 # - appears to not use cache under load when 12 MaxRequestWorkers 12 # reduce max connections per child to avoid idle processes from holding onto memory # - memory use seems stable when 200 but could be lower than optimal # MaxConnectionsPerChild 350 MaxConnectionsPerChild 200 </IfModule>
References
- https://httpd.apache.org/docs/2.4/mod/prefork.html
- https://www.digitalocean.com/community/tutorials/how-to-optimize-apache-web-server-performance
- http://serverfault.com/questions/684424/how-to-tune-apache-on-ubuntu-14-04-server
- https://egloo.wordpress.com/2008/07/27/apache-out-of-memory-error/
- http://ryanfrankel.com/run-wordpress-digital-ocean-512mb-vps/
- https://www.narga.net/optimizing-apachephpmysql-low-memory-server/
- https://httpd.apache.org/docs/2.4/misc/perf-tuning.html
Load Impact

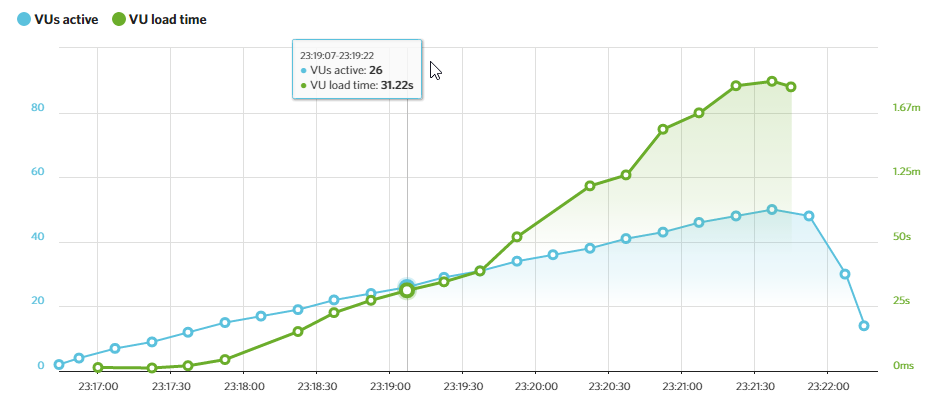

I first used the free no-login-required test, which loads 25 Virtual Users in 5 minutes, but by creating a free login profile you are allowed 5 (QTY)-five minute tests (executions) up to 100 VUs per month. Here are the results of the Load Impact test with Apache tuned, showing load times in the low seconds for up to 15 users. This can likely be further improved, but the server is stable and adequate for the expected amount of traffic.
Neustar

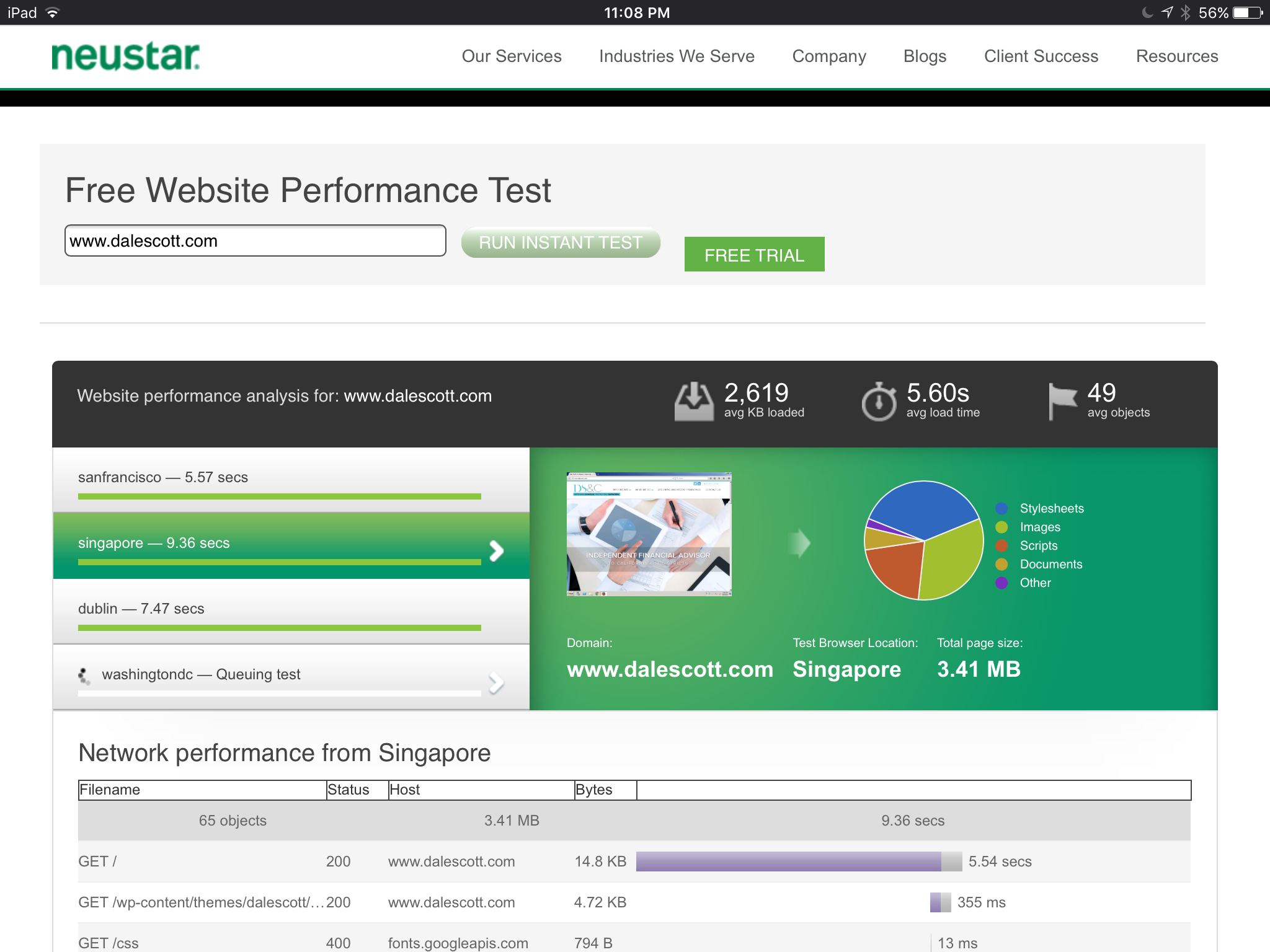

Neustar queued three servers for testing, but the Washington server never ran. Here are the results when I gave up waiting.
WebPageTest

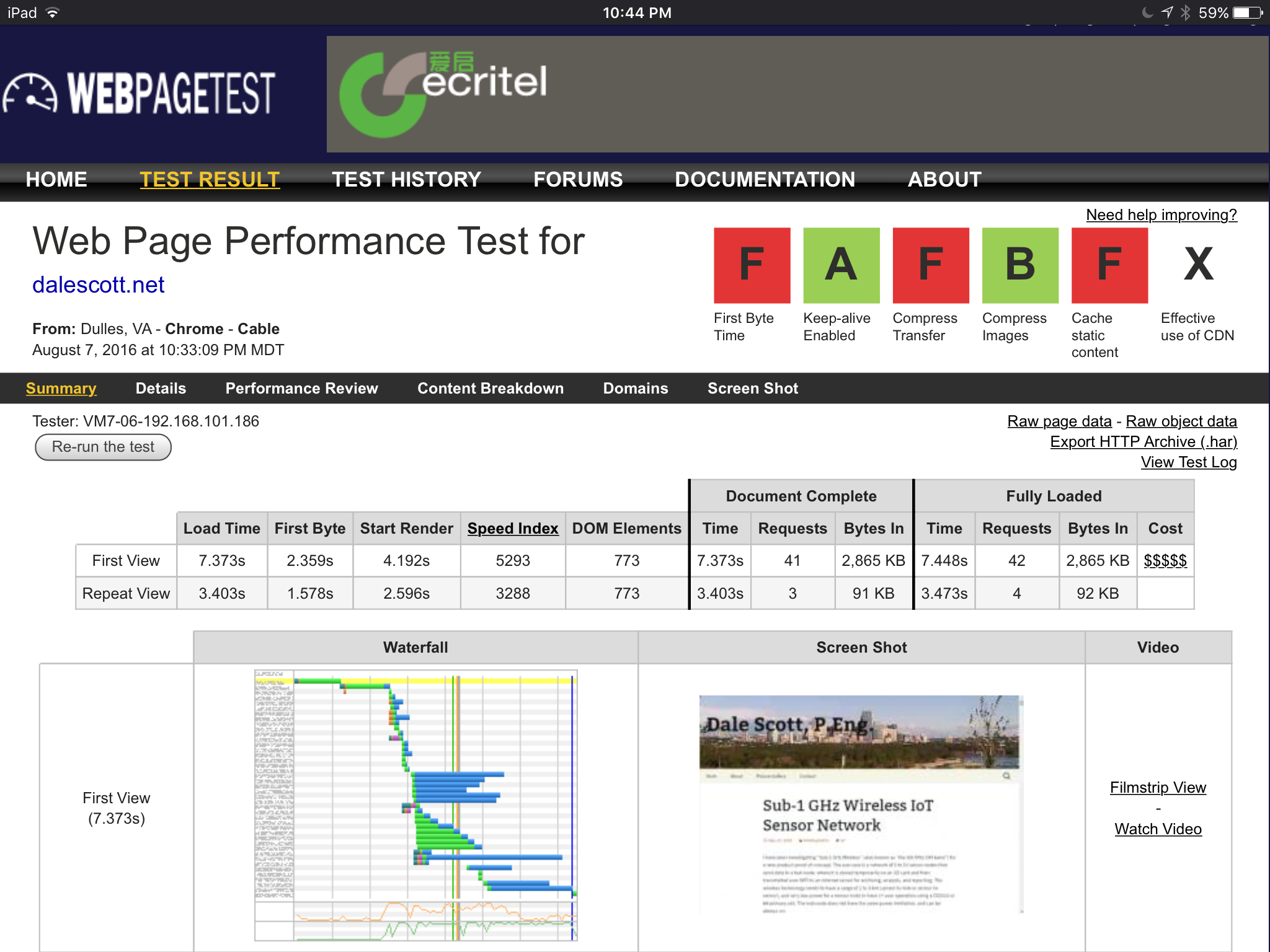

WebPageTest concentrates on measuring how fast it takes a page to load, and gives lots of information for digging into the load times for each aspect of the page. I was looking for more of a general load or stress test to see if my server will fail under load, but the information can be valuable none the less.
Server Performance

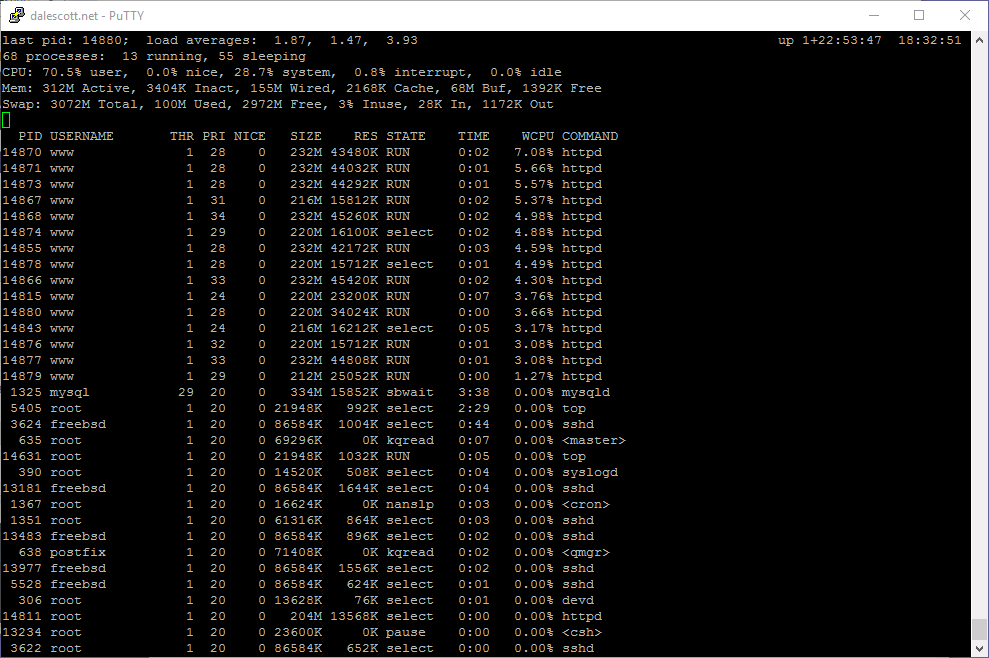

Here are the result of top while the Load Impact no-login (20 VU) test is running. Although the server can by no means be considered fast, it also is not exhausting swap and stalling. I’m pleased for now, and will be back to review when time permits.
